Robot base platform

£8.50£23.50

Introducing V-STEM’s robot platform kit, 3D printed in PLA this product gives any hobbyist or educational student a low cost expandable experimental robot base platform.

Clear
SKU: N/A Category:

Description

Introducing V-STEM’s robot platform kit, 3D printed in PLA this product gives any hobbyist or educational student a low cost expandable experimental robot base platform.

Features : additional sensors, motors or any of V-STEM’s robot addons can be mounted onto the platform using M4 Cap Head bolts or make use of the platform being compatible with Technic Lego.

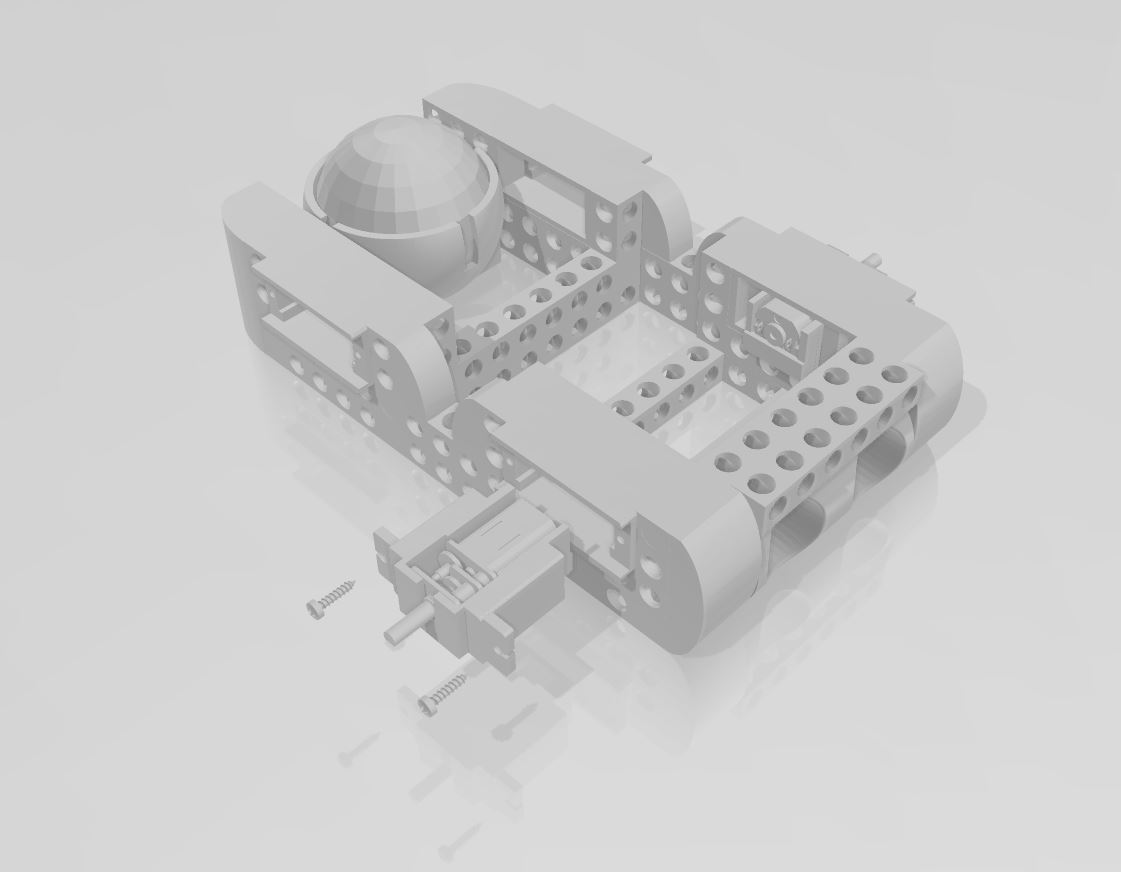

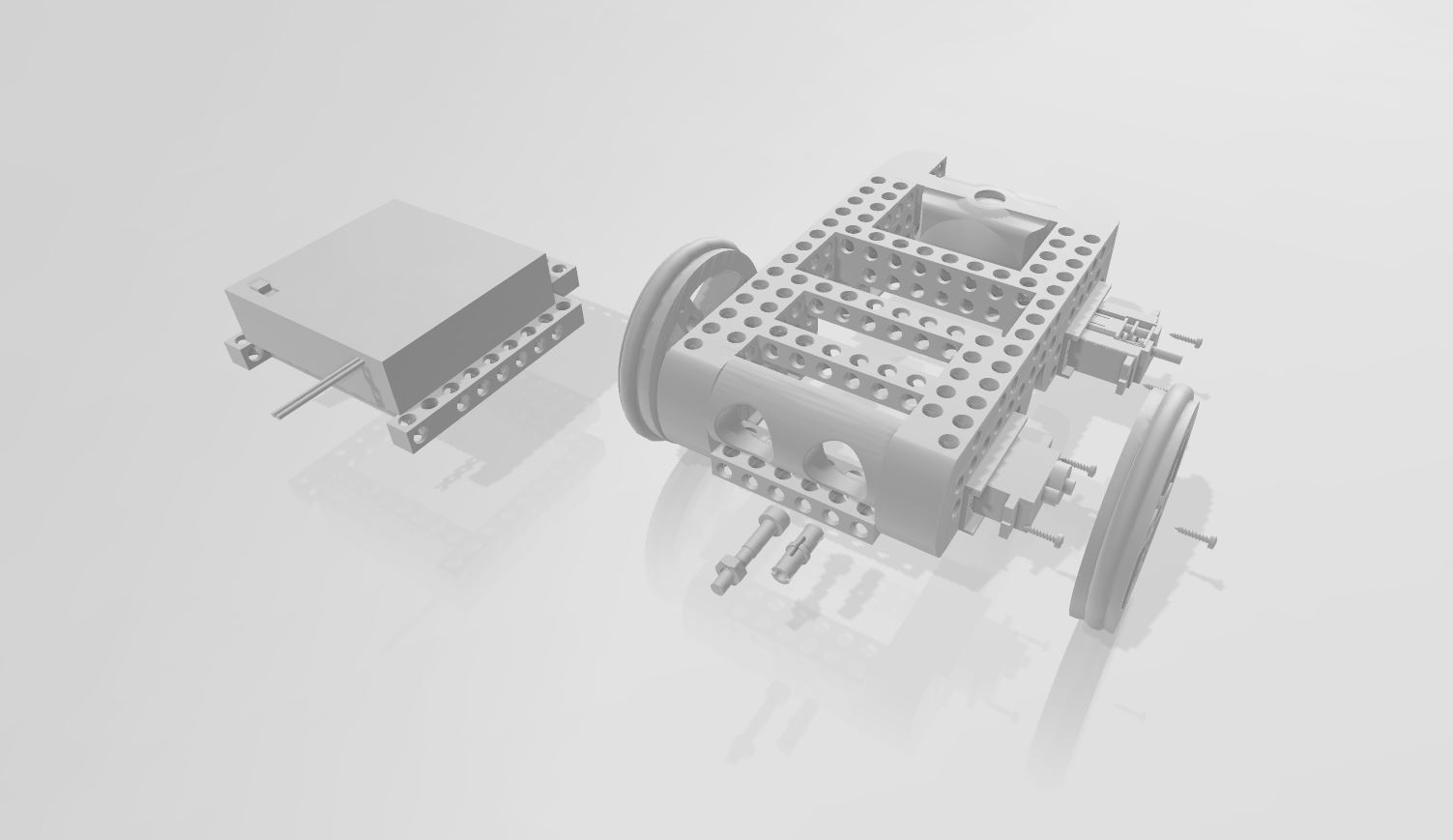

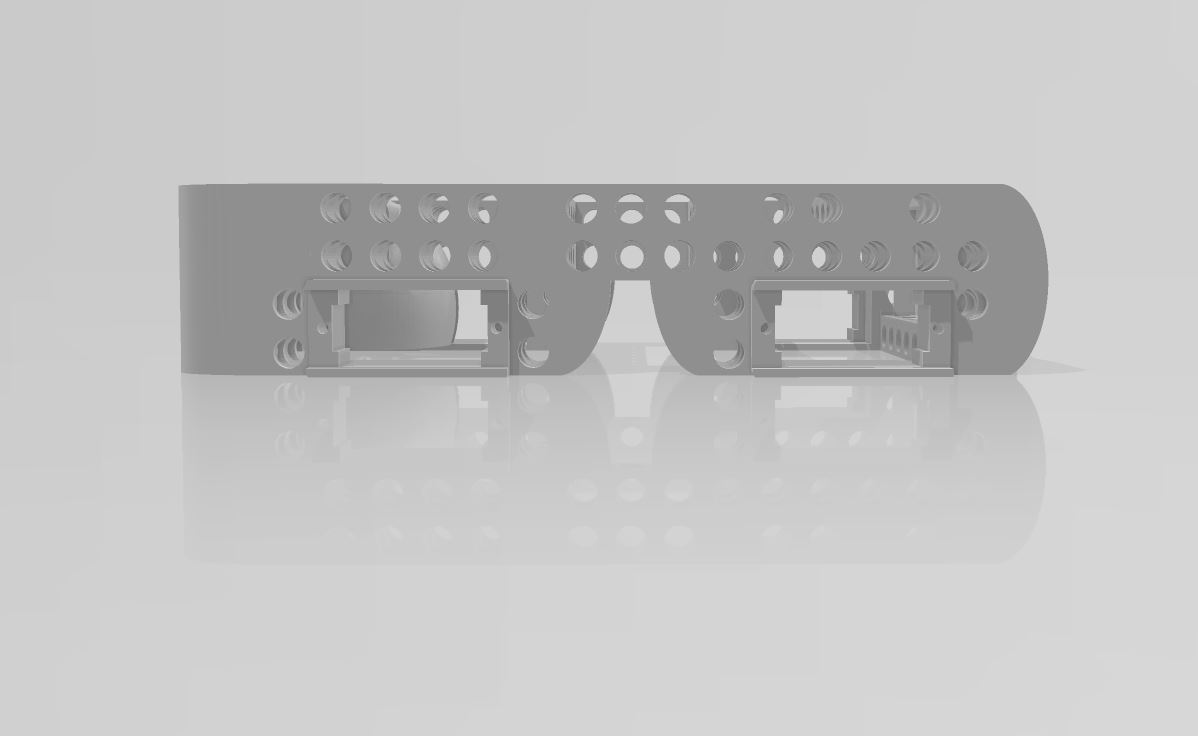

The drive system can be configured to be either 2WD with rear omni wheel or 4 wheel drive. Multiple drive options allow the user to configure the drive system between N20 motors or SG90/MG90S continuous rotation servos.

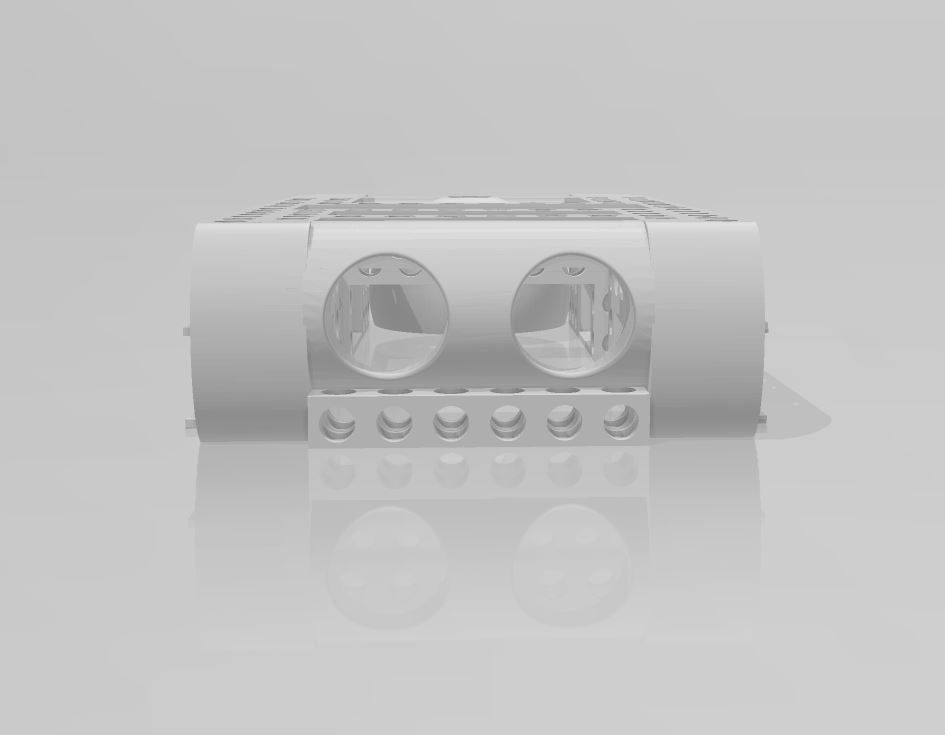

The robot platform has been designed to allow the user to add a Ultrasonic sensor (HC-SR04) into the front of the robot platform.

Options :

N20 Motors – DC 6V N20 Mini Micro Metal Gear Motor : RPM 300rpm@6V : Size 36x12x10mm per motor : Weight 9.5g per motor

SG90 – Operating speed: 0.12second/ 360degree ( 4.8V no load), Stall Torque (4.8V): 17.5oz /in (1kg/cm), Operating voltage: 3.0V~7.2V, Temperature range: -30 to +60, Dead band width: 7usec, ‎0.9 x 0.9 x 3.8 cm; 9 Grams

MG90S – Operating speed: 0.12second/ 360degree ( 4.8V no load), Stall Torque (4.8V): 17.5oz /in (1kg/cm), Operating voltage: 3.0V~7.2V, Temperature range: -30 to +60, Dead band width: 7usec, 0.‎9 x 0.9 x 3.8 cm; 10 Grams. The MG90S Micro Servo has metal gears for added strength and durability.

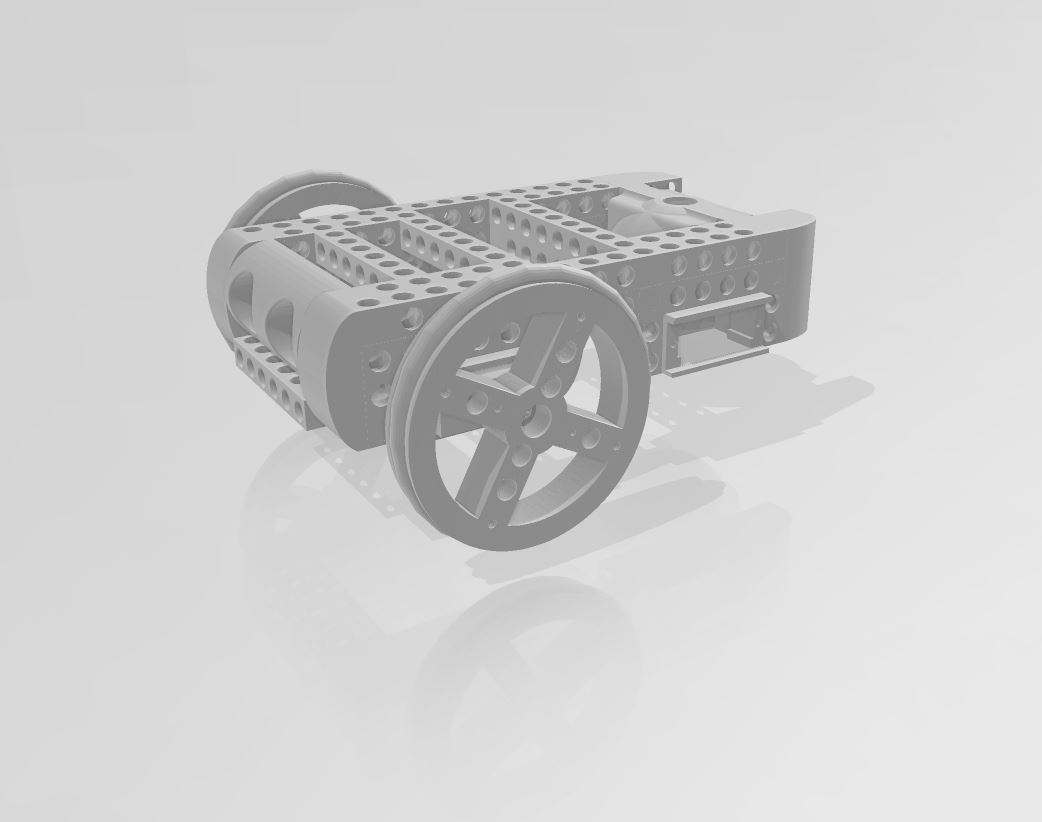

WHEELS – 64mm diameter wheels to be used with SG90/MG90S servos.

TRACKED – 44 Track links (assembled)

Robot base

  • Easy to assemble kit

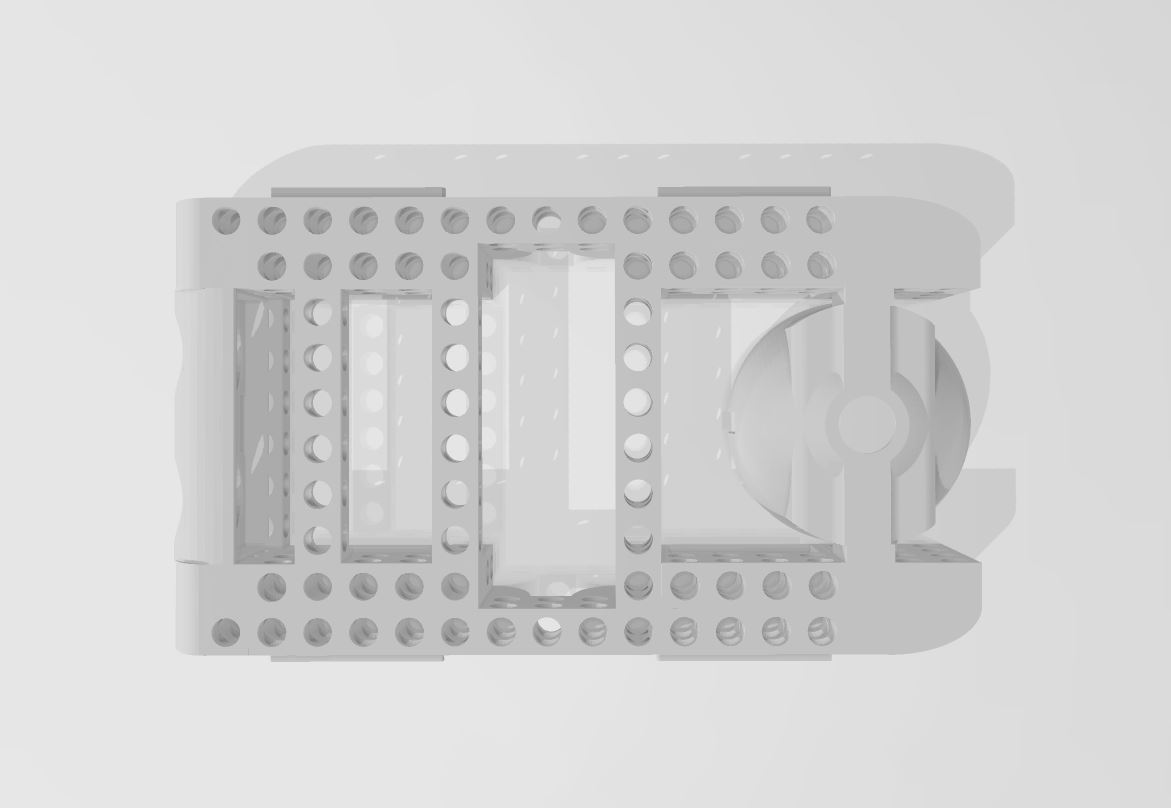

  • Platform size : 14.7cmx8.8cmx3.1cm
  • Platform weight : 120g
  • Material : White PLA

Additional information

Base platform options

Base Platform, Base Platform 2WD (SG90), Base Platform 2WD (SG90)/Wheels, Base Platform 4WD (SG90), Base Platform 4WD (SG90)/Wheels, Base Platform 2WD (MG90S), Base Platform 2WD (MG90S)/Wheels, Base Platform 4WD (MG90S), Base Platform 4WD (MG90S)/Wheels, Base Platform 2WD (N20), Base Platform 4WD (N20), Tracked Base Platform 4WD (MG90S)
